TECHNICAL PARAMETERS:


Working Area600x900mm
Laser Power60w  80w  100w  130w  150w
Laser SupplySealed Co2 Laser Tube EFR/CDWG/RECI
Engraving Speed0-1000mm/s
Cutting Speed0-300mm/s
Min Engraving SizeChinese :2*2mm,English:1*1mm

Location Accuracy

≥±0.01mm
MotherboardDSP RuiDa or Trocen
SoftwareRDworks  CorelDRAW  CAD  Photoshop
Graphic formatAI / PLT/ CDR / DXF / BMP / JPG / PNG etc.

Operating Voltage

AC 110V - 220V ± 10% 50-60 Hz
Upgrade function

Double head / Rotary / CCD / Auto focus


DESCRIPTION:


X / Y three-axis linear guide, equipped with 57 motors, Ruida DSP motherboard. Can achieve fast cutting.

High-quality laser tube, laser power supply, reduce the failure rate.

The DSP system supports off-line cutting and continuous engraving after power failure.

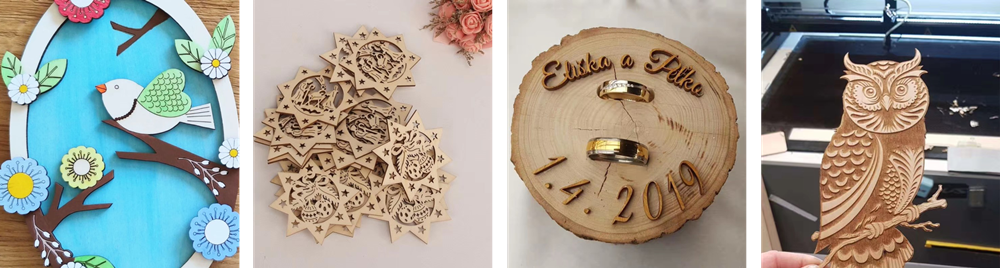

Application range:
